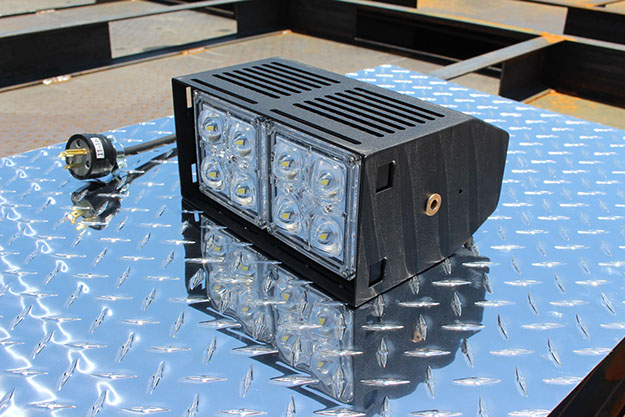

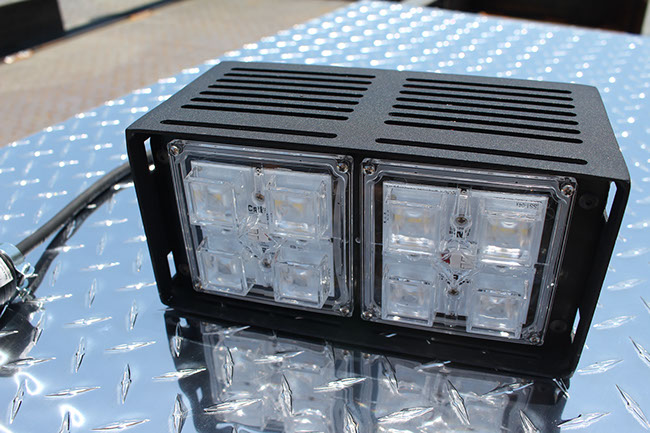

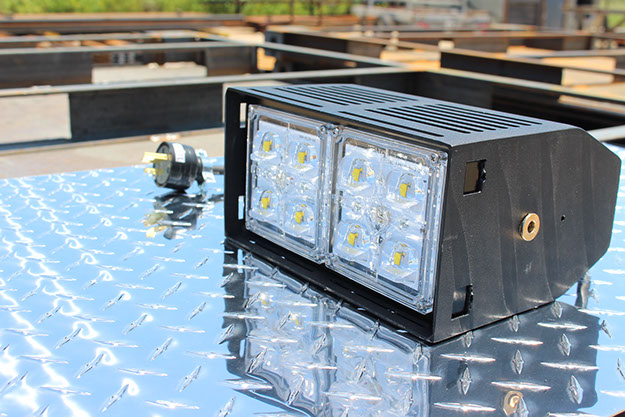

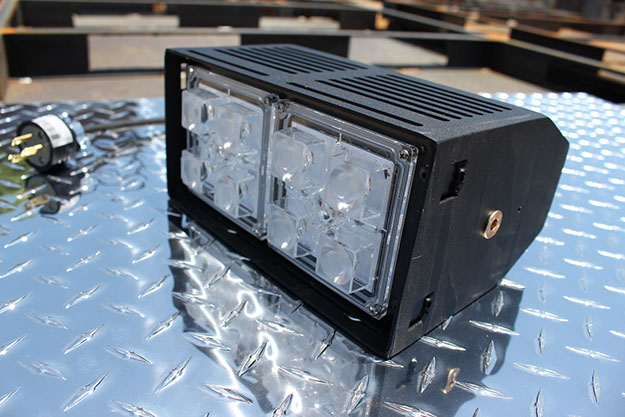

SMS70 Series Lights

The SMS70 series lights can meet the toughest illumination requirements, in the most rugged environments, with their 8400 lumen output LEDs and variable lensing options you'll never be left in the dark again. Protected by reinforced steel housing with our double coat process for durability and protection, the SMS70 can take a beating, as well as weather the elements with their IP66 rated internals. All the while staying cool with our custom forged aluminum heatsinks and an efficient draw of 72 watts.



Available in both AC and DC.

Lens Variants

A

B

C

D

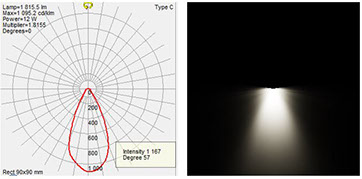

SMS70AC-A / SMS70DC-A

The 'A' variant lens features a symmetrical round pattern dispersing light in a 60 degree cone. Used as a flood light while horizontal, and a wall wash or down light (such as for a parking lot) while vertical.

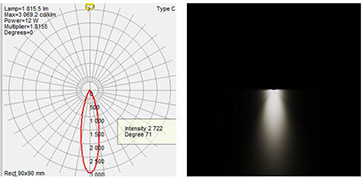

SMS70AC-B / SMS70DC-B

The 'B' variant lens features a symmetrical round pattern dispersing light in a 25 degree cone. Used as a spotlight while horizontal or high bay light when vertical.

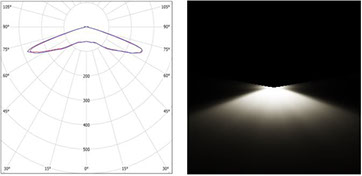

SMS70AC-C / SMS70DC-C

The 'C' variant lens features a rounded rectangle pattern that disperses light in a 60 degree cone. Typically used in parking lots or walk areas in a vertical position.

SMS70AC-D / SMS70DC-D

The 'D' variant lens features an asymmetrical half circle pattern mainley used to project light away from a wall while mounted in a vertical fashion.
